Choosing the wrong security camera is an expensive mistake — and it happens constantly. Resolution numbers look impressive on a spec sheet, but image quality in the real world depends on a dozen other factors. This guide cuts through the marketing and tells you exactly what to evaluate before you buy.
📋 Table of Contents
Camera Types and When to Use Each
- Turret cameras — The most versatile option. Low-profile, wide field of view, resistant to IR reflection from the housing. Great for most indoor and outdoor installs.
- Bullet cameras — Best for long-distance monitoring, like driveways or perimeter fences. Visible and acts as a deterrent.
- Dome cameras — Vandal-resistant housing. Good for indoor retail, corridors, and commercial spaces where aesthetics matter.
- PTZ cameras — Pan-tilt-zoom capability for large areas. Higher cost, but allows active monitoring and auto-tracking.
- Varifocal cameras — Adjustable focal length. Useful when you need to fine-tune coverage distance after installation.
Resolution: What Actually Matters
Resolution is the most marketed spec — and the most misunderstood. The real differentiator isn’t just resolution — it’s the image signal processor (ISP). A 4MP camera with a good ISP chip will outperform a cheap 4K camera in real-world conditions, especially at night.
| Resolution | Megapixels | Best Use Case |
|---|---|---|
| 1080p | 2MP | Indoor, short range, budget systems |
| 4MP | 4MP | Most outdoor installs — good balance of detail and storage |
| 4K / 8MP | 8MP | Wide-area coverage, license plate capture, larger properties |
Night Vision Performance
Night vision is where budget cameras fall apart. There are two main technologies:
- Traditional IR (infrared) — Uses infrared LEDs to illuminate the scene in black and white. Common in budget cameras. Tends to produce grainy images and can cause IR bounce-back when mounted near walls or ceilings.
- ISP-enhanced low-light — Advanced image processing manages noise, contrast, and infrared handling. Results in cleaner, more detailed night footage. What you want in a professional system.
If your cameras will be covering areas with no ambient lighting — rural driveways, parking lots, back yards — pay close attention to real night vision specs, not just the advertised IR distance. Our Titanium 4MP Turret Camera includes advanced ISP processing for significantly cleaner night performance.
Weather Rating and IP Ratings
- IP65 — Dust-tight, protected against water jets. Minimum for outdoor use.
- IP66 — Dust-tight, protected against powerful water jets. Better for rain-exposed locations.
- IP67 — Full dust protection, waterproof up to 1 meter. Best for extreme environments.

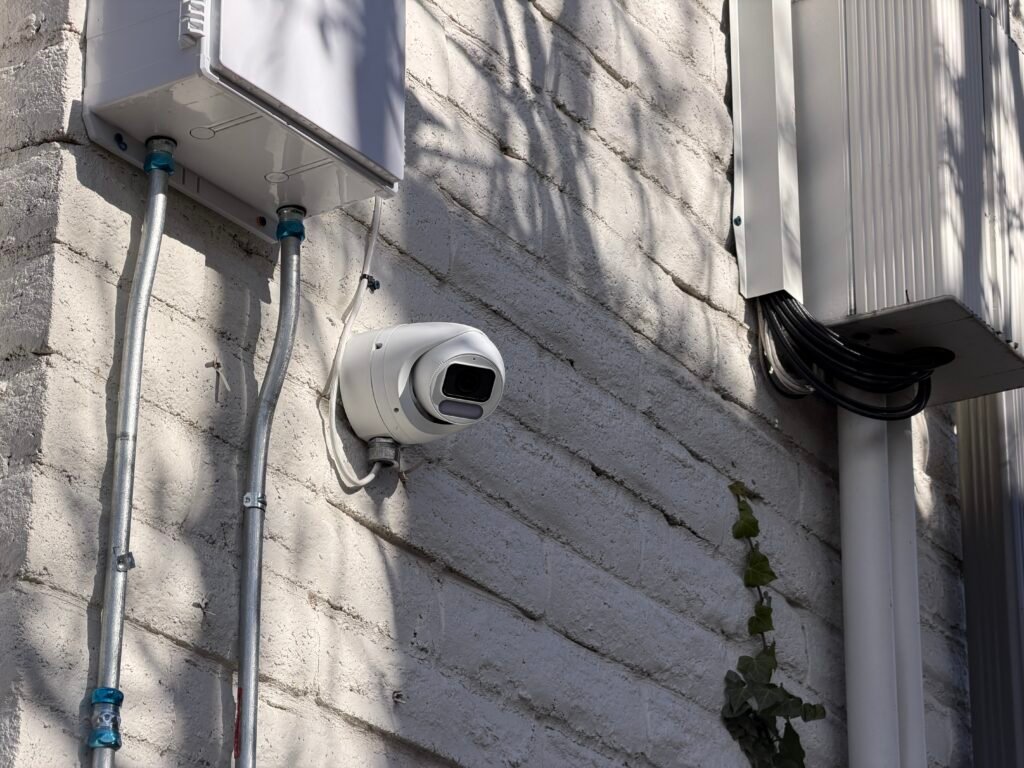

Don’t forget cable connections — even a properly rated camera will fail if the RJ45 connections at the back aren’t protected. Always use junction boxes on outdoor installations.
Lens and Field of View
- 2.8mm lens — Wide angle (~110°). Good for tight spaces, hallways, room corners.
- 4mm lens — Standard wide (~90°). Most common for general outdoor use.
- 6mm lens — Moderate zoom (~55°). Better for driveways and longer coverage zones.
- Varifocal (2.8–12mm) — Adjustable on-site. Useful for complex installs.
IP vs. Analog in 2026
If you’re building a new system today, IP is the right choice. PoE (Power over Ethernet) cameras run a single cable for both power and data, making installation cleaner and more scalable. Our 4-Channel 4MP Turret Camera Kit and 8-Channel 4K Turret Camera Kit are complete PoE systems ready to deploy out of the box.
NVR and Storage Planning
- NVR channel count — Buy more channels than you currently need. It’s much cheaper to plan ahead.
- Hard drive — Always use a surveillance-rated drive (WD Purple, Seagate SkyHawk). Standard HDDs fail quickly under 24/7 write loads.
- Retention time — Most installs target 7–30 days of footage. Higher resolution and more cameras require more storage.
Use our free Security Camera Storage Calculator to estimate exactly how much storage your system needs. Browse our WD Purple HDD collection for surveillance-rated drives.
For most installs, the fastest path to a quality system is a complete kit:
- 👉 4-Channel 4MP Turret Camera Kit — Best for homes and small businesses
- 👉 8-Channel 4K Turret Camera Kit — Larger properties, more coverage
- 👉 Titanium 4MP Turret Camera 4-Pack — Adding cameras to an existing system
Need help designing a system for a larger property or commercial site? Roylance Consulting provides professional CCTV system design and technical consulting.
Frequently Asked Questions
What resolution should I get for a home security camera?
4MP is the sweet spot for most home installs. It provides enough detail for facial identification without excessive storage requirements. If you’re covering wide areas or want license plate capture, consider 4K (8MP).
Can I mix camera brands on one NVR?
Many PoE NVRs support ONVIF-compatible cameras from different brands. However, advanced features like smart detection and remote viewing work best with matched cameras and NVR from the same manufacturer.
What’s the difference between DVR and NVR?
A DVR is used with analog cameras over coaxial cable. An NVR works with IP cameras over ethernet/PoE. For new installs, NVR is the modern standard.
How many cameras do I need for my home?
Start by mapping entry points: front door, back door, garage, and any blind spots around the perimeter. Most homes are well covered with 4–8 cameras. Our 4-channel kit is a great starting point.
Do I need professional installation?
For simple home setups, a quality DIY kit is very manageable. For larger or commercial properties with complex coverage requirements, professional design helps avoid expensive mistakes. Contact Roylance Consulting for expert guidance.
